FxUAV TECHNOLOGIES — TELEMETRY SERIES

FxLink
2.4

India's First 50Km Long Range Telemetry.
Legit, license-free, long-range.

↓ DOWNLOAD BROCHURE ORDER NOW

50KM

TRANSMISSION RANGE

345Kbps

DATA RATE

MAX TX POWER

PRODUCT OVERVIEW

LONG RANGE 2.4GHz
TELEMETRY MODULE
FOR DRONES

Discover the advanced features that set the FxLink 2.4 Telemetry Module apart from any other data link. Each element is engineered to deliver long-range connectivity, rock-solid reliability, and uncompromised security for your UAV missions — ensuring confidence and control in every flight.

2.4 GHz wins over 928 MHz. Operating in the license-free ISM band, the FxLink gives Indian operators a legal, high-performance alternative to imported 928 MHz solutions — with superior range and zero regulatory friction.

KEY SPECIFICATIONS

TECHNICAL DATASHEET

2.4 GHz ISM Band (2.400–2.4835 GHz) with advanced frequency-hopping spread spectrum (DTSS) technology for reliable, interference-resistant communication.
Serial interfaces: 3.3V TTL seamless integration with a wide range of flight controllers and ground systems.
Optional 128-bit AES encryption mission-critical data remains protected, subject to export regulations where applicable.
Up to 50 km transmission range with adaptive bandwidth, automatic frequency-hopping, and robust bi-directional telemetry at 345 Kbps.
Adjustable TX power: 100 mW – 1 W Receiver sensitivity: –108 dBm for long-range reliability.
Operating temperature: –55 °C to +85 °C Input: 9–55V DC (3S–12S LiPo) with onboard regulation.
Forward Error Correction + CRC error detection Ultra-low power sleep modes · Remote diagnostics.

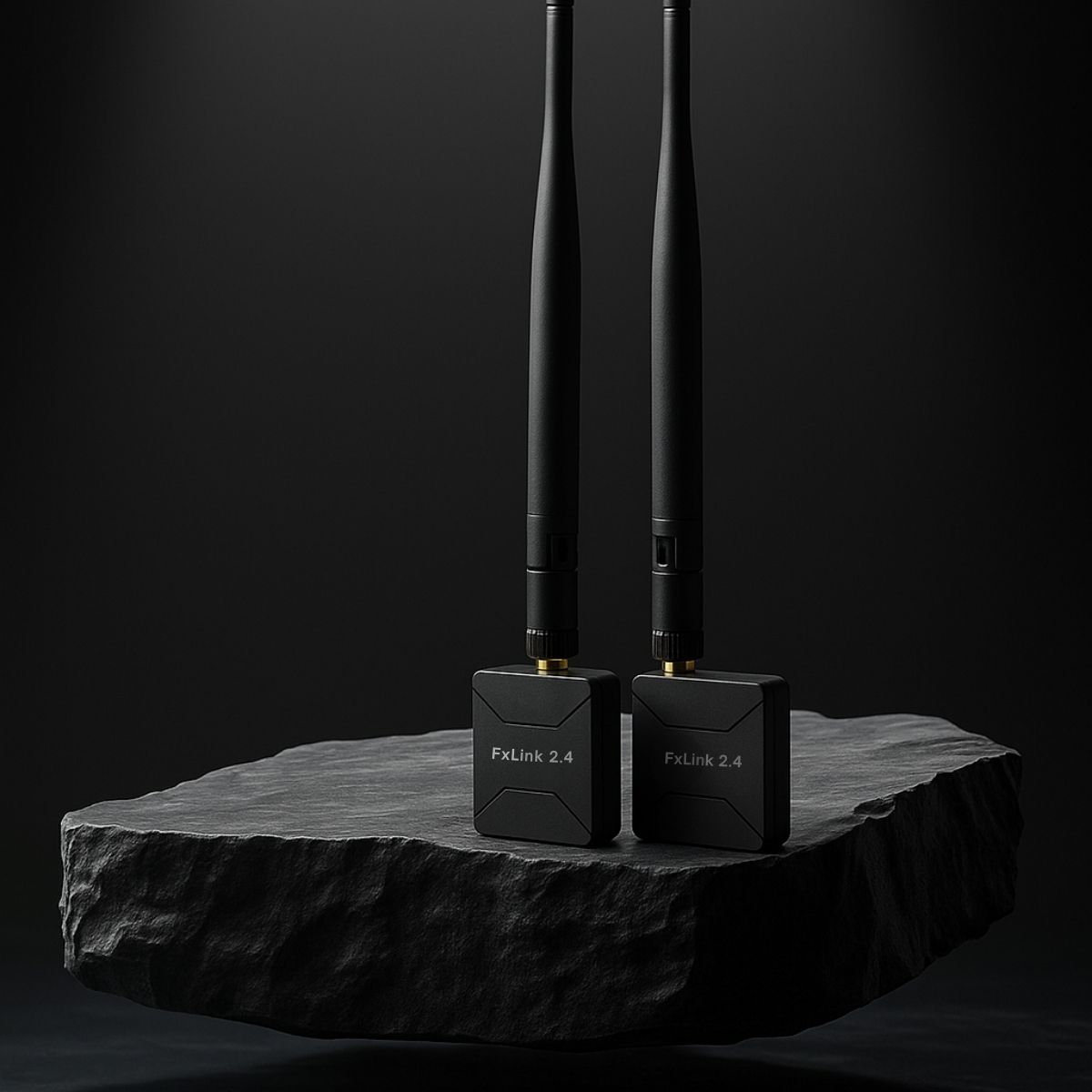

Built in Bharat. Built for professionals who fly further — indigenous precision with zero import dependency.

STOP IMPORTING PROBLEMS —
START DEPLOYING 2.4 GHz ISM IN INDIA.

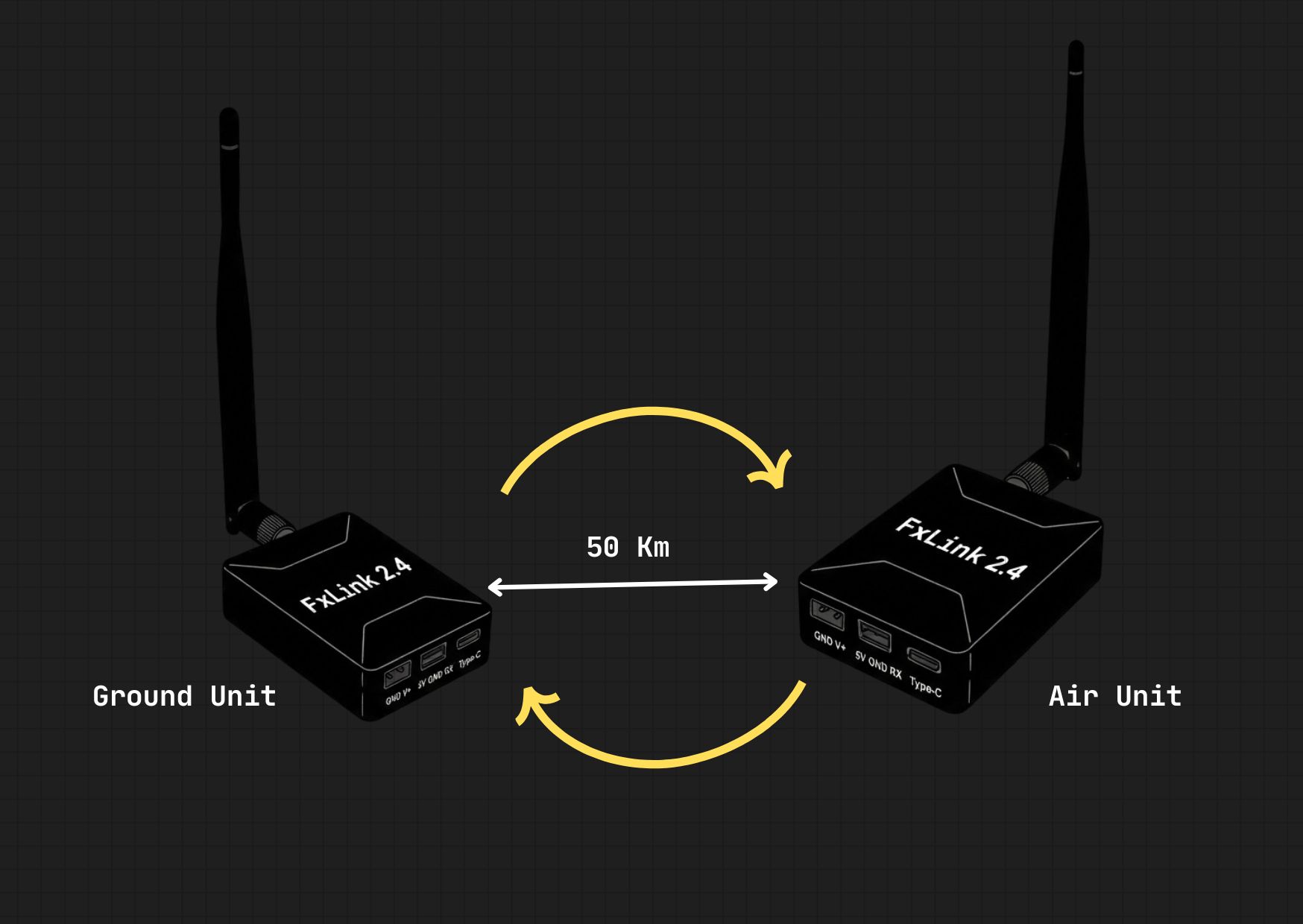

Ground Unit ←— 50 Km —→ Air Unit

UNLOCK THE POTENTIAL

RANGE FOR EVERY MISSION

From underground mines to open skies — FxLink delivers where others drop out.

⛏

01 USE CASE

MINING

Deep-site telemetry for survey & inspection drones in complex terrain

🛡

02 // USE CASE

DEFENCE

Encrypted, long-range command & control for tactical UAV operations

📡

03 // USE CASE

SURVEILLANCE

Persistent area monitoring with uninterrupted bidirectional data link

04 // USE CASE

PATROL

Border & perimeter patrol with reliable BVLOS telemetry at range

FxLink2.4

LONG RANGE 2.4GHzTELEMETRY MODULEFOR DRONES

KEY SPECIFICATIONS

RANGE FOR EVERY MISSION

FxLink
2.4

LONG RANGE 2.4GHz
TELEMETRY MODULE
FOR DRONES
